72 CC project

grinnergetter
Part Timer
Part Timer
Posts: 35
Joined: Sun Oct 30, 2011 7:21 pm

Re: 72 CC project

Postby grinnergetter » Mon Apr 08, 2013 5:27 pm

Progress report....

NW Fab...gonna try high steering.


cab back on...


Rebuilt and new dodge input shaft installed.


Kinda setting there. Everything looks pretty good as far as clearances. Engine is 2" to the passenger side.

1973 CS converted to Highboy, My Evil Green Truck, D60 axles,460 running 4.56 gears. Power Steering and Hydroboost conversion.
1972 Ford Crew Cab
1979 F250 4X4...Almost done.

Disable adblock

This site is supported by ads and donations.
If you see this text you are blocking our ads.
Please consider a Donation to support the site.


Alstoyz
New Member
New Member
Posts: 19
Joined: Sun Aug 28, 2011 5:49 am
Location: GAINESVILLE, TX

Re: 72 CC project

Postby Alstoyz » Mon Apr 08, 2013 7:22 pm

Looking good!!! I had considered converting my '72 crew to a 4X4 in the same manor. I wound up putting my body on a '93 F-350 4X4 chassis. I'm very interested in watching your progress... :D

grinnergetter
Part Timer
Part Timer
Posts: 35
Joined: Sun Oct 30, 2011 7:21 pm

Re: 72 CC project

Postby grinnergetter » Mon Apr 15, 2013 4:45 pm

Hmmm, reclocking is not an option with my tranny. HD skidplate...how about adding to bottom the frame...hmmmm.

1973 CS converted to Highboy, My Evil Green Truck, D60 axles,460 running 4.56 gears. Power Steering and Hydroboost conversion.
1972 Ford Crew Cab
1979 F250 4X4...Almost done.

User avatar
InfoFord
SR Moderator
SR Moderator
Posts: 1421
Joined: Mon Mar 24, 2008 5:03 pm
Location: Kalispell MT
Contact:

Re: 72 CC project

Postby InfoFord » Mon Apr 15, 2013 6:29 pm

grinnergetter wrote:Hmmm, reclocking is not an option with my tranny. HD skidplate...how about adding to bottom the frame...hmmmm.




I personally would not take a chunk out of the frame makes for a weak spot

I modded my picador frame to accept a larger Tcase


Disable adblock

This site is supported by ads and donations.
If you see this text you are blocking our ads.
Please consider a Donation to support the site.


grinnergetter
Part Timer
Part Timer
Posts: 35
Joined: Sun Oct 30, 2011 7:21 pm

Re: 72 CC project

Postby grinnergetter » Wed Apr 24, 2013 7:00 pm

Cool idea. Unfortunately this darn TC is just too wide. I'm trying to find out if a front dodge case half would reclock the TC up a bit. If I can pull that off then I'm hoping a slight mod to the floor will get this taken care of.
The frame has a side plate that was most likely put the by the factory and I'm going to box the frame just past this point. Heck I can always weld it back up.
1973 CS converted to Highboy, My Evil Green Truck, D60 axles,460 running 4.56 gears. Power Steering and Hydroboost conversion.
1972 Ford Crew Cab
1979 F250 4X4...Almost done.

grinnergetter
Part Timer
Part Timer
Posts: 35
Joined: Sun Oct 30, 2011 7:21 pm

Re: 72 CC project

Postby grinnergetter » Fri May 10, 2013 7:27 pm

Hopefully this will fix the TC issue.


Put my steer arms on today and it looks like the tie rod is going to hit the crossmember in it's stock form so it looks like I'll have to cycle the suspension to see what mods will have to happen.

purtee,


It's just angle but clearly 2" between imaginary tie rod and CM just isn't going to cut it.


1973 CS converted to Highboy, My Evil Green Truck, D60 axles,460 running 4.56 gears. Power Steering and Hydroboost conversion.
1972 Ford Crew Cab
1979 F250 4X4...Almost done.

User avatar
OrthmannJ
Moderator
Moderator
Posts: 3283
Joined: Sun Jun 08, 2008 11:32 am
Location: Yakima WA
Contact:

Re: 72 CC project

Postby OrthmannJ » Tue May 14, 2013 11:45 am

Looks like you are making progress. Nice work by the way. Keep the updates coming.
1969 F-100
1996 F-350 Crew Cab Powerstroke
Previous rigs:
1978 F-250 crew cab
1994 Explorer XLT
1978 Bronco Ranger XLT
1981 F-100 shortbox stepside Ranger XLT
1994 F-150 XLT S/C 4X4

grinnergetter
Part Timer
Part Timer
Posts: 35
Joined: Sun Oct 30, 2011 7:21 pm

Re: 72 CC project

Postby grinnergetter » Sun Jun 09, 2013 3:29 pm

Clocking ring fixed TC issues and created others. Basically there i so much going on that removing the CM was the only answer. At least most everything will benefit from this. I can get the engine almost another 1" to the passenger side.


So long....

1973 CS converted to Highboy, My Evil Green Truck, D60 axles,460 running 4.56 gears. Power Steering and Hydroboost conversion.
1972 Ford Crew Cab
1979 F250 4X4...Almost done.

grinnergetter
Part Timer
Part Timer
Posts: 35
Joined: Sun Oct 30, 2011 7:21 pm

Re: 72 CC project

Postby grinnergetter » Mon Dec 23, 2013 7:39 pm

Been a while, better put up an update. I basically had to put her on hold for a while but I'm pecking away at it now.

I found an alternate A/C highmount bracket in my local JY. All of my part number are different that what I've found online, but it works and cost me $30.00 for everything. Hopefully I can get the T case a bit more to the passsenger side now.


That's about the time I had to move it out of the barn.

Shoved her back this fall in but I'm kinda draggin my feet to see if I can find a 24v/ 6 speeds set up so I'm moving on to the rear axle. Cut out the stock d60 and am going to mock up with stock 3" leafs to figure how much lift I'm going to need to level it out. This means I need 3" hangers as well. I have a set from my 73 and I'm pretty sure the 2wd rear/front hangers are the same as 78-79. I have a spare set on the way just in case.


Dang, these frames are thin.

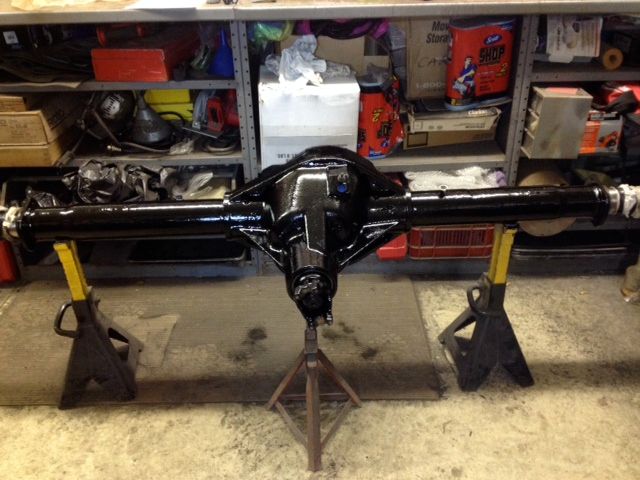

D80 all rebuilt and pretty.



Grinder bit me....thought that was going to be a gusher at first:


Picked up a spare block to use for mockup and well....ya just never know. I can't put my hiost in front of the truck in my barn so this beings way,way lighter I should be able to hang it over the side and continue with the engine- T case debacle.

1973 CS converted to Highboy, My Evil Green Truck, D60 axles,460 running 4.56 gears. Power Steering and Hydroboost conversion.
1972 Ford Crew Cab
1979 F250 4X4...Almost done.

grinnergetter
Part Timer
Part Timer
Posts: 35
Joined: Sun Oct 30, 2011 7:21 pm

Re: 72 CC project

Postby grinnergetter » Sat Feb 15, 2014 8:24 pm

Moving along:

D80 is in but need the proper leafs still. I converted to 3" leafs.


New CM and perches are most of the way done. I was able to get 3.5 to the passenger side. TC just barely gets into the frame now.



Started boxing the frame:


Till next time
1973 CS converted to Highboy, My Evil Green Truck, D60 axles,460 running 4.56 gears. Power Steering and Hydroboost conversion.
1972 Ford Crew Cab
1979 F250 4X4...Almost done.
